Oil Fired Steam Boiler Manufacturer in India
The industries requiring clean combustion, effective production of steam, and thermal efficiency need modern boilers that can perform continuously. Shanti Boilers produces Oil Fired Steam Boilers, which are capable of producing continuous steam production, emissions, fuel efficiency, and complete automation.

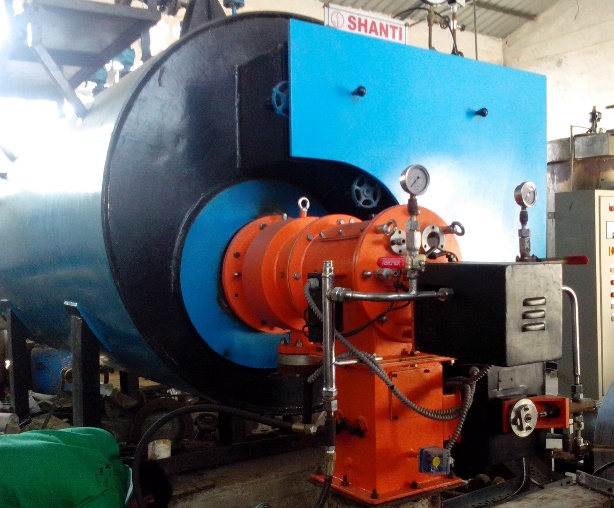

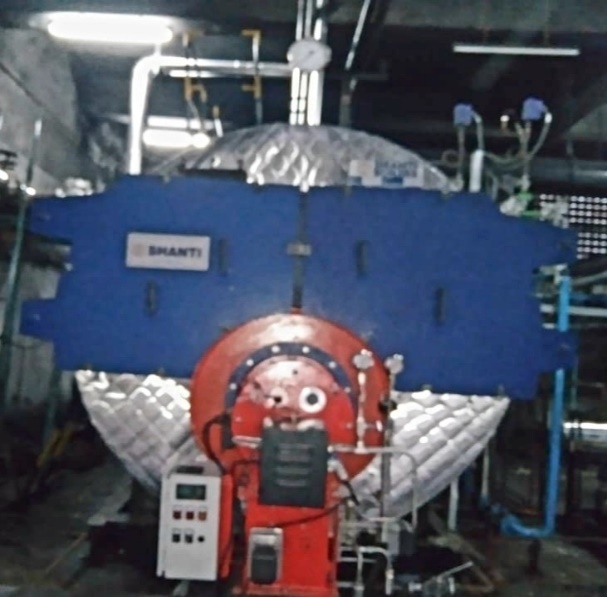

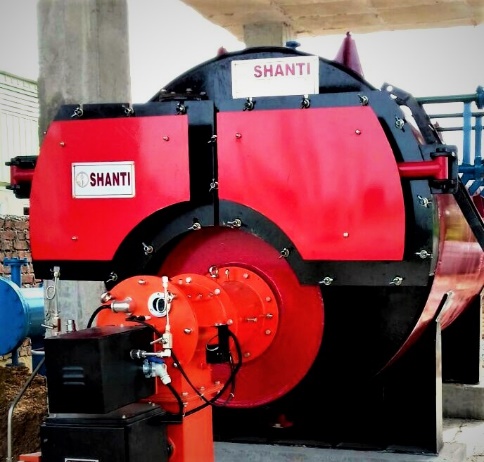

Shanti Oil Flame Boiler (SBH-OF Series) is a high-quality boiler with three passes and wet back type, fabricated according to Indian Boiler Regulations (IBR) using the best quality materials. These boilers are capable of operating on various types of liquid fuels, providing industries with operational flexibility, fuel savings, and longevity.
With decades of experience in engineering, Shanti Boilers provides custom-designed oil-fired boilers for various industries.
What is an Oil Fired Steam Boiler?
An Oil Fired Steam Boiler is a package boiler that runs on liquid fuel like FO (Furnace Oil), Heavy Oil, LDO (Light Diesel Oil), and HSD (High-Speed Diesel).
The oil is vaporized by the high-efficiency burner and mixed with the combustion air to provide complete combustion. The resultant heat energy is exchanged multiple times inside the boiler with maximum heat transfer and production of dry steam using a minimum amount of fuel.
The oil-fired boilers are very much popular in industries where there is a need for clean combustion, quick steam production, temperature control, and automation.
Engineered for High Efficiency & Safe Operation
Shanti Oil Fired Boilers are produced employing modern technology in heat transfer and fabrication for dependable operation in tough industrial environments.
The construction of each boiler is made out of SA 516 Gr.70 boiler steel plates that are cut by CNC machines. Pressure parts are tested thoroughly using the methods such as dye penetrant (DP), radiographic, and following IBR manufacturing procedures.
Three-pass Wet-Back design helps in utilizing heat more effectively while minimizing heat loss.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | Shanti Oil Flame Boiler |
| Model Series | SBH-OF Series |
| Boiler Type | Three Pass, Wet Back Packaged Boiler |
| Fuel Type | Furnace Oil (FO), Heavy Oil, LDO, HSD |
| Evaporation Capacity | 500 kg/hr to 15,000 kg/hr |
| Working Pressure | 10.54 kg/cm² to 19.5 kg/cm² |
| Thermal Efficiency | Up to 88% (NCV Basis) |
| Operation | Fully Automatic |
Compatible Fuels
Shanti Oil Fired Boilers are designed to operate efficiently on multiple liquid fuels, including:
The ability to operate on different oil grades provides industries with flexibility based on fuel availability and operating costs.
Key Features of Shanti Oil Fired Boilers
High Thermal Efficiency
Optimized three-pass heat transfer ensures maximum energy utilization, achieving up to 88% efficiency.
Three-Pass Wet Back Design
Minimizes heat losses while improving combustion efficiency and extending overall boiler life.
Fully Automatic Operation
Complete combustion, fuel control, and safety monitoring are automated for consistent performance.
Advanced Burner Technology
Utilizes premium systems for efficient fuel atomization and complete, clean combustion.
IBR-Compliant Manufacturing
Manufactured using certified materials following strict Indian Boiler Regulations procedures.
Superior Manufacturing Quality
Uses SA 516 Gr.70 steel, CNC cutting, and radiographic testing for high structural integrity.
Comprehensive Safety Systems
Integrated fire-side and flue-side controls provide reliable protection against abnormal conditions.
Low Maintenance
Robust construction and quality components ensure dependable, long-term performance with minimal downtime.
Working Principle
Combustion & Atomization
The oil-fired burner atomizes liquid fuel into fine droplets, which mix with combustion air inside the furnace, creating a highly efficient flame.
Heat Transfer (Three-Pass System)
The resulting flame generates heat that passes through the three-pass boiler system, transferring energy efficiently to the water surrounding the pressure vessel.
Steam Generation & Exhaust
As heat is absorbed, water converts into dry saturated steam for industrial processes. Flue gases exit after maximum heat transfer, minimizing energy loss.
Benefits of Choosing Shanti Oil Fired Boilers
Industrial Applications
Shanti Oil Fired Boilers are suitable for industries requiring clean, efficient, and uninterrupted steam generation. Typical applications include:
Why Choose Shanti Boilers?
Shanti Boilers has built a reputation for delivering high-performance industrial heating solutions that combine engineering excellence with long-term reliability.
Frequently Asked Questions
What fuels can an Oil Fired Boiler use?
Shanti Oil Fired Boilers operate on Furnace Oil (FO), Heavy Oil, Light Diesel Oil (LDO), and High-Speed Diesel (HSD).
What is the capacity range?
The boilers are available in capacities from 500 kg/hr to 15,000 kg/hr.
Are the boilers fully automatic?
Yes. The burner, combustion control, fuel supply, and safety systems operate automatically.
What is thermal efficiency?
The boiler achieves efficiencies of up to 88% (NCV basis) under recommended operating conditions.
Which industries use Oil Fired Boilers?
They are commonly used in food processing, pharmaceuticals, chemicals, hospitals, hotels, dairies, textiles, and various manufacturing industries requiring clean steam.
Are the boilers manufactured according to IBR?
Yes. Every Shanti Oil Fired Boiler is manufactured in accordance with Indian Boiler Regulations (IBR) and undergoes stringent quality inspections.
Get High-Efficiency Oil Fired Boilers from Shanti Boilers
Looking for a reliable Oil Fired Steam Boiler Manufacturer in India? Shanti Boilers offers customized oil-fired boiler solutions engineered for high efficiency, dependable operation, and long-term industrial performance.
Whether you require a new boiler installation or a replacement for your existing steam system, our engineering team can recommend the ideal solution based on your process requirements.
