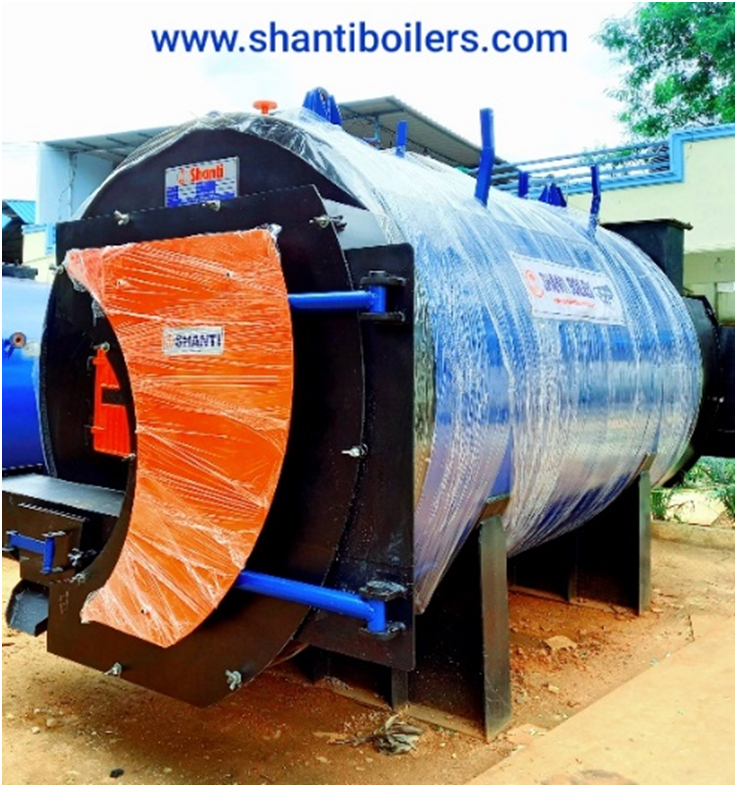

Shanti Solid Flame Boilers are three pass wet back, packaged internal furnace type manual fired Boiler which can be fired on solid fuels like Wood / Wood Waste / Coconut shells , Bio mass briquettes . Shanti Boilers offers Internal Furance Packaged Skid mounted Solid Fuel fired Steam Boilers are optimally designed to give maximum operational efficiency to our Boiler users . These boilers provide best solution for cost effective steam production .The Boilers are suplied with varried grate like bars and specially designed SS air nozzles for achiving maximum combustion efficiency depending on the fuels . .

Model Name : Shanti Solid-Flame

Model No : SF Series ( WB/SWB/DB)
Fuels : Wood , Wood waste , Coconut & ground nut shells , Bio mass Briquettes ,

Capacities

Evaporation capacity : 300 kg/hr. To 5000 kg/hr.
Working Pressure : 7 kg/sqcm, 10.54 kg/sqcm to 17.5 kg/sqcm

Firing Mode : Manual



Features

  • Specially designed for Bio Mass Fuels

  • Skid mounted ensures negligible site work .

  • Higher steam space to ensure dry steam

  • Optimal heating surface for quick steam output

  • Optimised designed tube nest in 2nd & 3rd Pass to derive maximum efficiency

  • Easy access of maintenace and tube cleaning

  • Balanced draft design for efficient combustion of fuel in furnace

  • Use of superier quality valves and fittings ensure durability and negligible maintenace

  • Less space requirements

  • Single & Twin Furance avaliable

  • All safety interlocks for safe operations

Applications

Suits process industries like plywood , agro based industry , food process , paper , dairy and paper and textile , rubber and other process industries
